LamiFlex600/1600

LamiFlex600/1600
LamiFlex600/1600LamiFlex600/1600
CategoriesPVC Coated Fabric
AlbumView larger image
BrandTaimei
Life Time1-2 year
Update Time2020-08-10
Detail Information

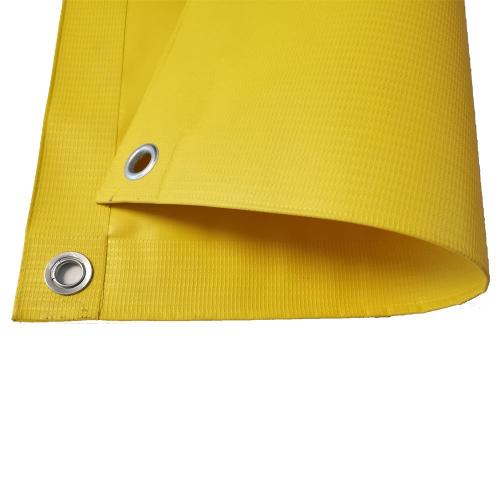

LamiFlex600/1600

Vinyl coated polyester is a material frequently used for flexible fabric structures. It is made up of a polyester scrim, a bonding or adhesive agent, and an exterior PVC coating.

PVC polyester fabric has excellent tensile strength, measured in denier. The coating used for this vinyl often has fire retardant additives, anti-fungicides, and UV stabilizers.

Features:

MATERIAL DESCRIPTION
ITEM UNIT RESULT TEST STANDARD
Weight (+/-3%) g/m2 450550650700DIN EN ISO 2286-2
Bese Fabric Type Polyester PolyesterPolyester Polyester DIN 60001
Yarn Denier 1000*10001000*10001300*13001300*1300DIN EN ISO 2060
Fabric Count yarn/sq.inch 9*912*1212*1212*12DIN EN 1049-2
Thickness mm 0.380.460.540.58-
Roll Width (Max) m 3.23.23.23.2 -
Roll Length (Max) m 20 - 80020 - 80020 - 80020 - 800 -
Surface Finishing Material PVC PVCPVC PVC ?
Tensile Strength-Warp N/5cm 1500 17002400 2400 DIN53354
Tensile Strength-Weft N/5cm 1400 16002300 2300 DIN53354
Tear Strength-Warp N/5cm 160 260300 300 DIN53354
Tear Strength--Weft N/5cm 150 250280 280 DIN53363
Coating Adhesiion N/5cm 90 100100 100 DIN53363
Temp Resistance -30 to +70 -30 to +70-30 to +70 -30 to +70 DIN EN 1876-2
Fire Retardent B1,B2 level is optional upon request
Treatment UV treated; Acrylic Lacquered upon request.
Color 16 standard color, and can be customized.
Printing Compatibility Printing Ready
Temp Resistance Special treatment to use under -40℃ (optional)
Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications.

?

Features:

  • Flame Retardant
  • Shrink-Resistant
  • Tear-Resistant
  • Waterproof
  • Customized FR Standard
  • REACH Regulations Standard
  • Cadium Free

Colors Available:

  • Black

  • White

  • Red

  • Orange

  • Dark Green

  • Dark Red

  • Blue

  • Grey

  • Green

?

Applications:
